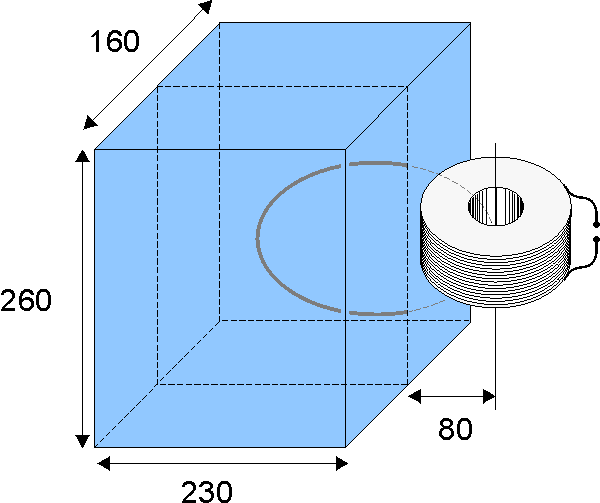

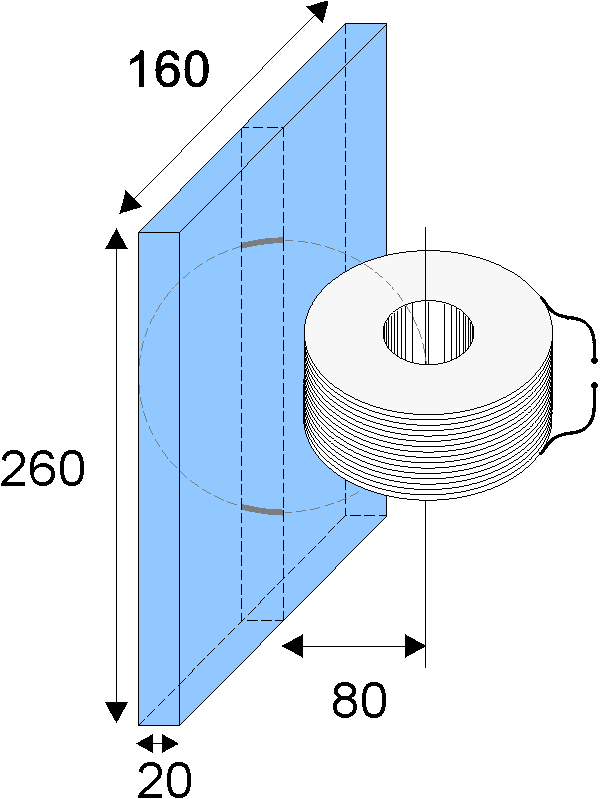

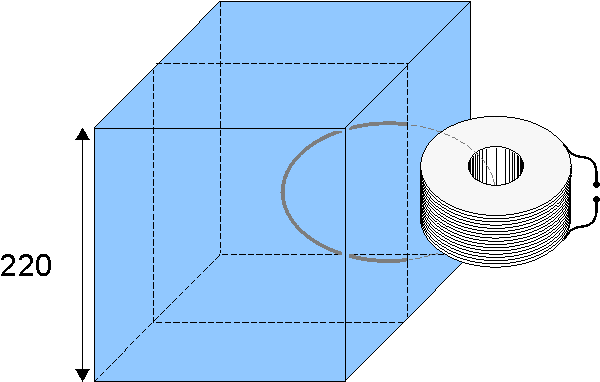

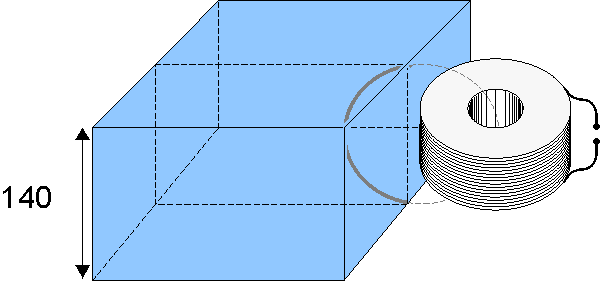

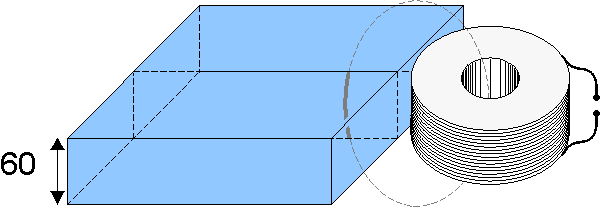

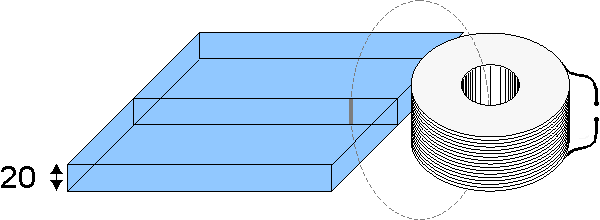

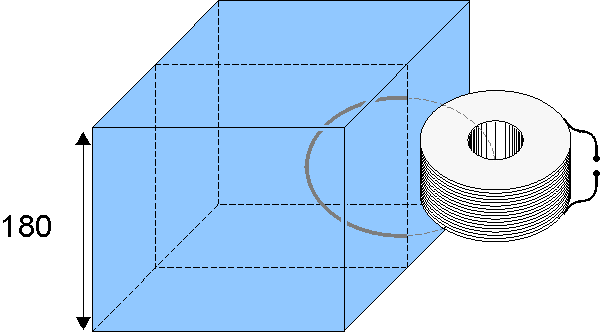

Fig. 12.13. Zero sensitivity lines in volume conductors of various forms. The dimensions are given in millimeters (Eskola, 1979, 1983; Eskola and Malmivuo, 1983).
As in Figure 12.11, the zero sensitivity lines are illustrated to continue hypothetically through the magnetometer coils.
